KiP Globe valve V46.0

Shut-off (manometric) KiP globe valve V46.0, pressure seal bonnet, sizes from DN8 to DN15, pressure up to PN250, working temperature up to 600°C

Contacts us

Working medium: water, water steam (overheated steam) and other non agressive liquids and gasses
Application: classical and nuclear energy; chemical industry.
Seismic Resistance: I-st class, according to IEC 980, IEEE 382, EN 60068-2-6;
- Class of safety: 3-rd, according to NP-068-05, NP-001-15.

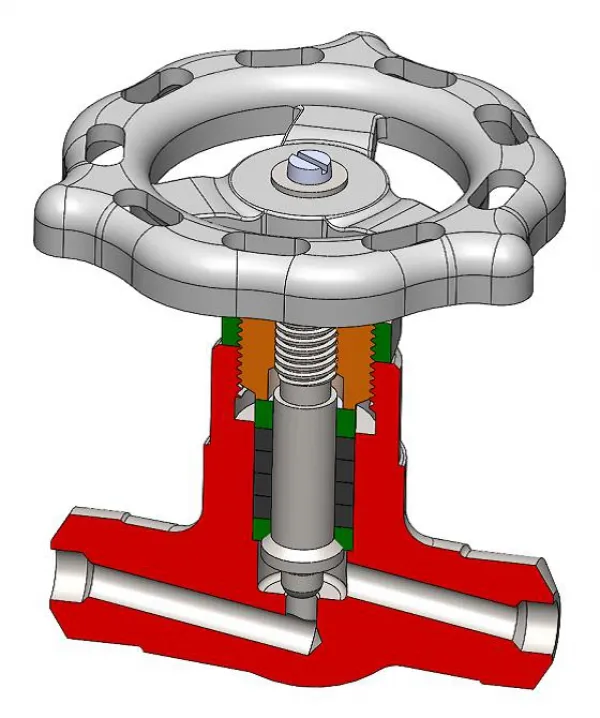

The globe valve V46.0 is constructed with a monolithic body, inside which the spacer-back seat of stainless steel is located.
The body is made of forging from stainless, corrosion-resistant steel grade W№1.4541 / X6CrNiTi18-10.
The seat of the stem (the disc) is welded with wear-resistant, hard alloy material.
The stem is made of special high temperature resistant steel.
The connection of the globe valves is according to EN, DIN, ANSI (ASME), GOST implemented by:
- butt weld type BW;
- with threaded ends;
- with union connections;
- combined (with different connections).
The operation of the globe valve is manual with handwheel.
The tests the globe valves are carried out in accordance with EN12266-1,2 or according to the working conditions and customer’s requirements.
The globe valves V46.0 can be installed in any position, but the installation must comply with the marking (arrow) indicating the direction of the fluid (working medium).

The globe valve has has pressure seal design.
Monolythic stem (spindle) - strength, stability and wear resistance.
Isolated stem nut from the working fluid, compared to the other constructions of KiP valves.
Unified design from DN8-15, providing the possibility of lower cost of spare parts.
Permanent stock availability of spare parts.
